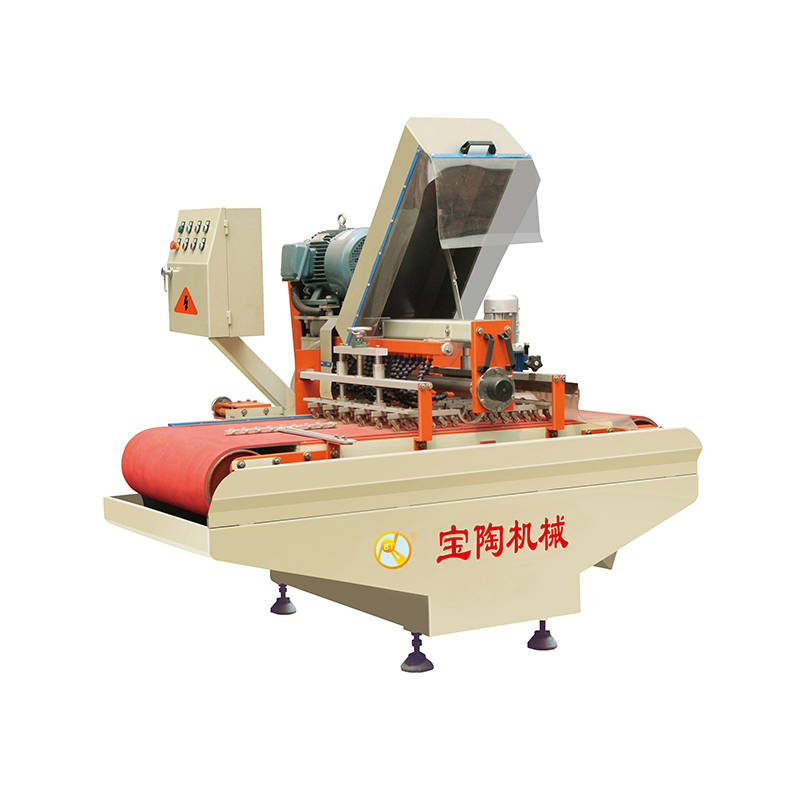

BT-800 Single Axis Ceramic Mosaic Cutting Machine

Founded in 2005,Foshan Bao Tao machinery Equipment Co., Ltd. is a well-known brand manufacturer of various kinds of ceramics, stone processing machinery and equipment research and development, production, sales and after-sales service.
  • product details


-Description of BT-800 Mosaic Tile Cutters


BT-800  Mosaic Tile Cutters, this is a cutting mosaic tile with tile cutter, it is specialized to cut tile strips or mosaics. It can install 7-8 blades on the spindle, which can cut the tile into several strips in one time. For example, cut 800x800mm tiles, it can install 7pcs of blades, and cut into 10pcs of 98x100 strips. The machine mainly is mainly used to cut strips, the width of strips decided by the distance of blades, which can be adjust by spacer and gasket.


BT-800 automatic continuous tiles cutting machine are suitable for all kinds of ceramic tiles and porcelain tiles, wall and floor tiles, glazed tiles, vitrified tiles. It can big tiles into small strip tiles and mosaic tiles. Different width can be processed simultaneously with chipping free cutting edges, and also chamfering function. The width of processing was set from 30mm to 600mm & 800mm. The machines are with advanced design, and high accuracy of main axle of cutting head. The cutting spindles can be up and down simultaneously by electricity. The conveyor belt of "V" shape was welded as orientation at the bottom of conveyer belt assuring cutting in straight line, is not only high efficiency but also perfect.



-Parameter of BT-800 Mosaic Tile Cutters


No.

Name

800

Single Spindle

800

Double Spindle

1

Nos. Of cutting head

1pc

2pc

2

Dia. Of blade

Φ180-250mm

Φ180-250mm

3

Total power

16.5kw

31.5kw

4

Speed of conveyor

0.8-4.0m/min

0.8-4.0m/min

5

Cutting width

30-800mm

30-800mm

6

Max. Cutting thickness

20mm

20mm

7

Size of machine

2.50*1.60*1.50m

3.10*1.60*1.50m

8

Weight

About 1800kg

About 2500kg

9

Water consumption

300L/min

300L/min

10

Application

Mosaic, strips

Mosaic, strips

11

Materials

Tiles

Tiles
