1. Product introduction:

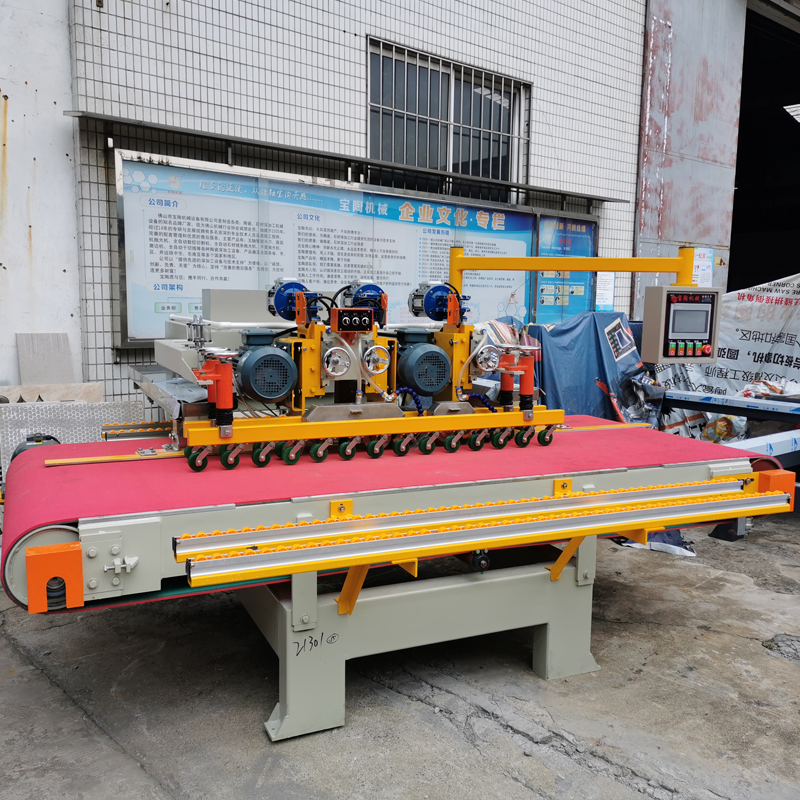

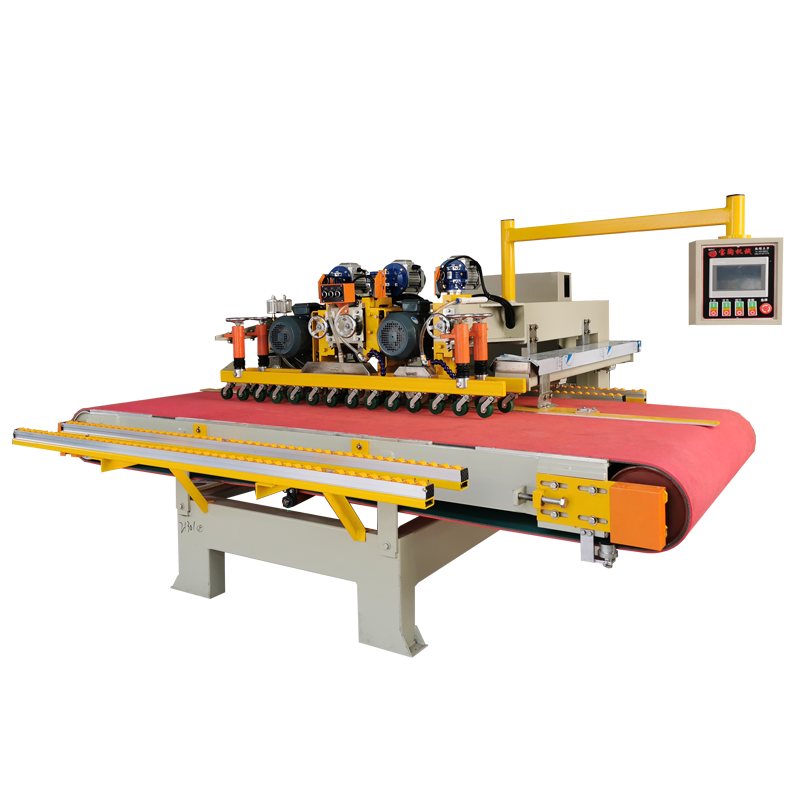

The 2700 CNC three-blade cutting machine is mainly designed for cutting large-size porcelain slabs and ceramic tiles.The batch cutting and edge trimming can be finished in one operation without cracking or dropping the corners;The maximum cutting size: 2.7 meters(width), cutting speed : 5-7 m/min ,and it is suitable for cutting large-size porcelain slabs and ceramic tiles,with high precision and good cutting effect; One CNC three-blade cutting machine can replace five manual cutting machines, the processing cost is extremely low, the cutting effect is stable. It is one of the indispensable equipment for porcelain slab/ceramic tile deep processing plants.
2. Main technical parameters:
Model | BT-3200 | |
Maximum processing length | 2700mm | |
Grinding motor powe | 4KW*3 | |
Processing thickness | 6-20mm | |
Working speed | 5-7m/min | |
Water consumption | 350L/min | |
Size | 3050*2600*1700mm | |
Weight | 3000KG | |
Total power | 15KW |
