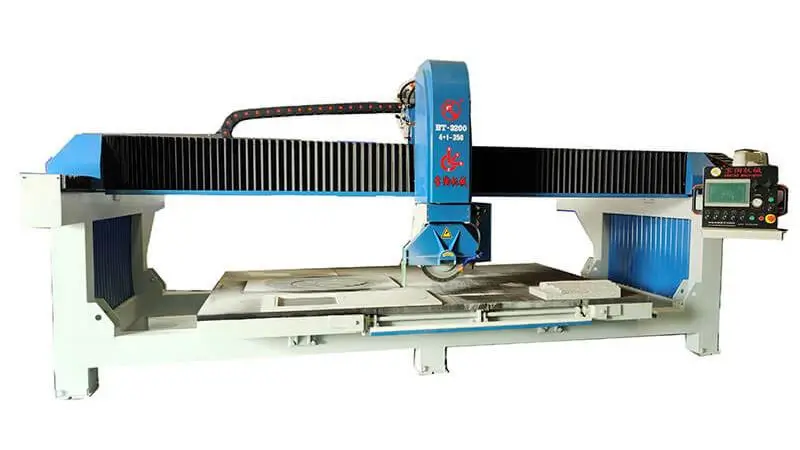

CNC Bridge Cutter Machine in 4+1 axis for stone countertop or kitchen tops making industry.

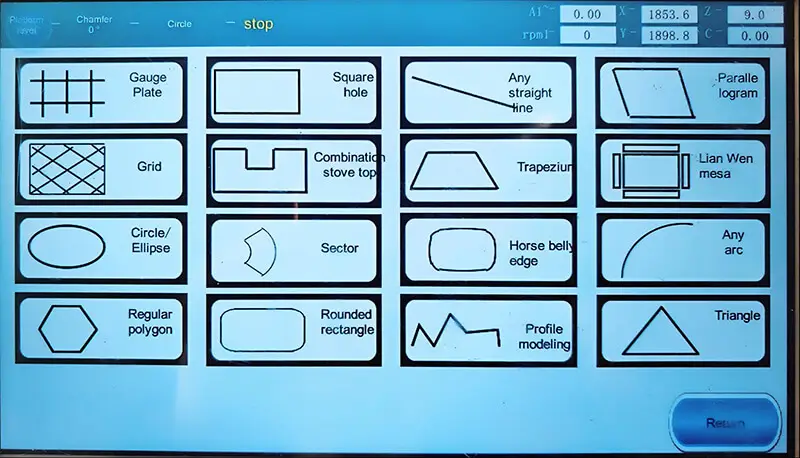

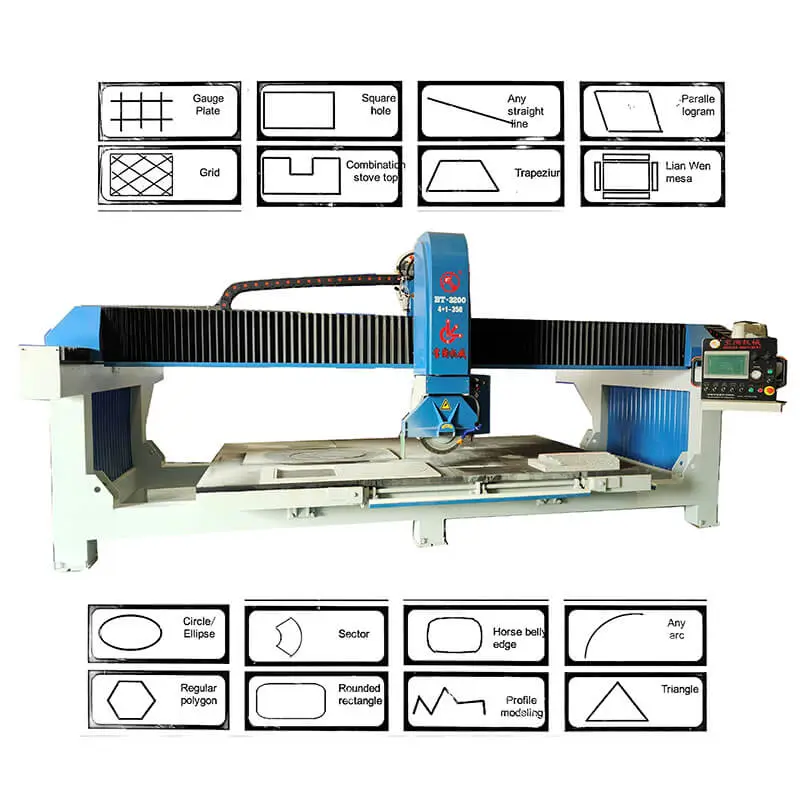

It comes with a built-in shape library for simple operation.
With its 360-degree rotating head and a high-speed milling cutter, it can handle just about any cut you need.
Click Working demo video:

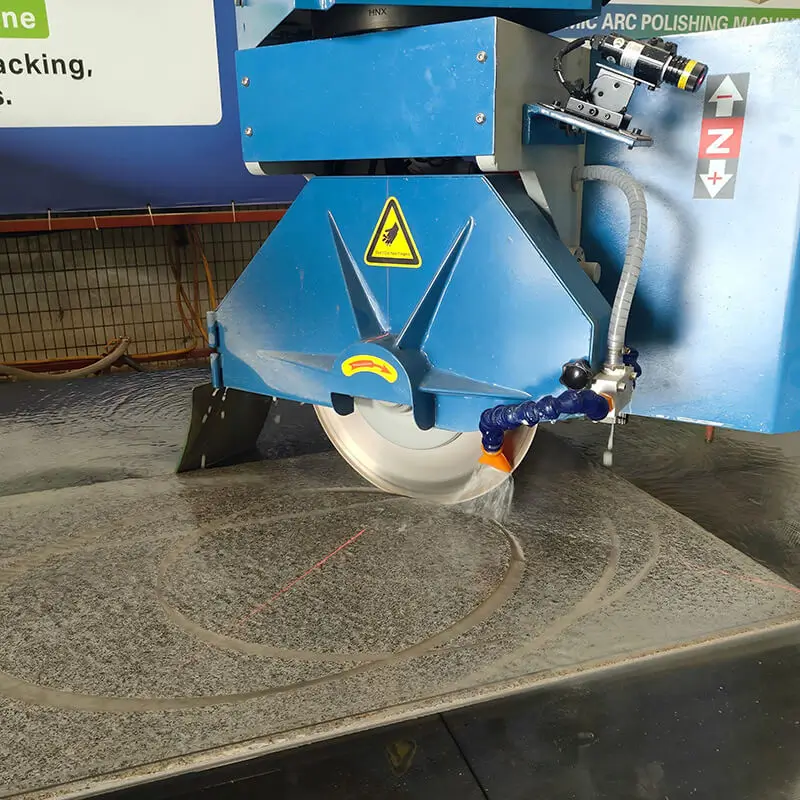

You can cut side to side and front to back, create 45-degree bevels on all edges, make angled cuts in any direction, and shape diamond patterns, rounded edges, circles, ovals, or custom profiles.

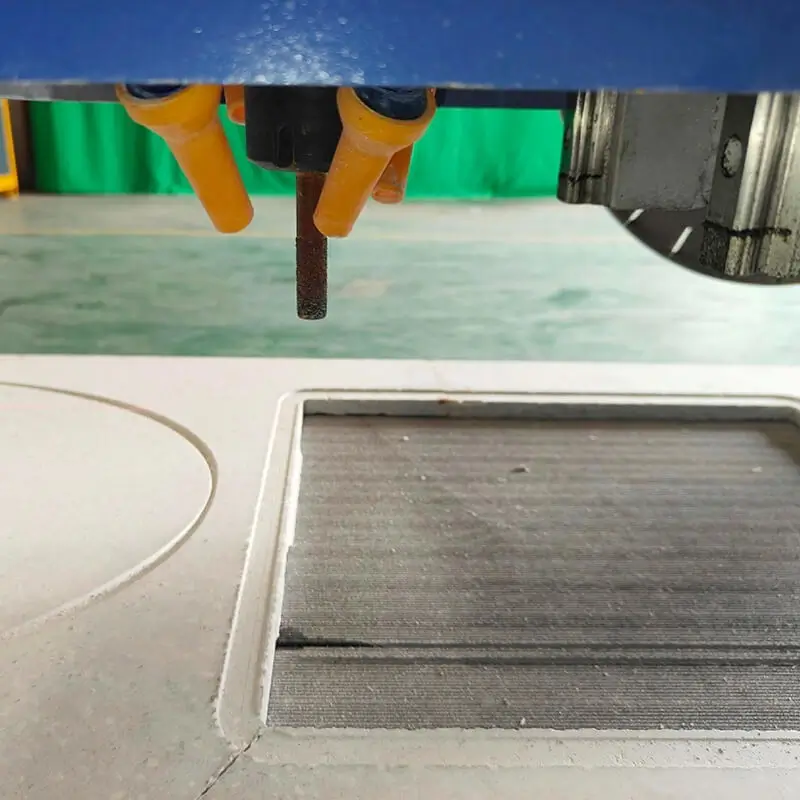

It also mills inside corners, cuts out square or round/oval holes, and can form drop-in or under-mount sink openings all in one go.
Please note, it does not support importing CAD files.

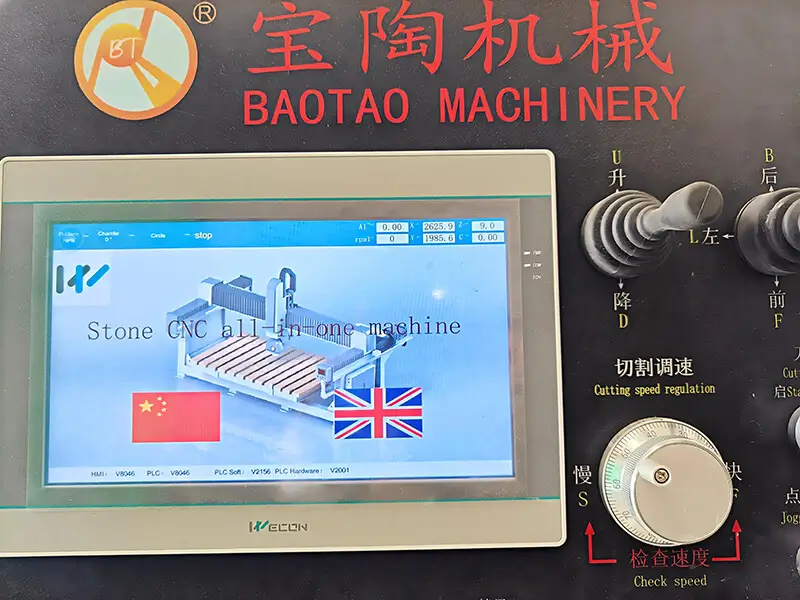

The user-friendly digital control system is easy to learn and start using right away.
Powered by precision servo motors, it works fast and accurately, making it an all-in-one solution for countertop fabrication.

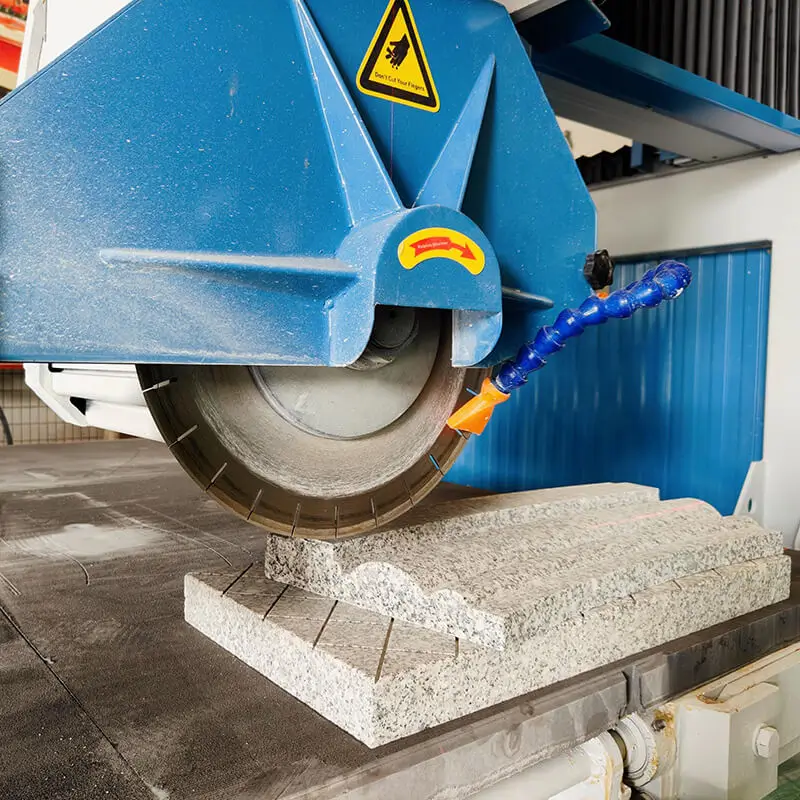

The combination of saw blade and milling cutter finishes the job in a single step.
It's the must-have tool for kitchen countertop work.
| Technical Parameters | |
| Maximum Machining Size | 3200*2000*80mm |
| X-Axis Stroke | 0-3200mm |
| Y-Axis Stroke | 0-2000mm |
| Z-Axis Stroke | 0-200mm |
| C-Axis Stroke | ±365° |
| Platform Flip Angle | 0-85° |
| Platform Material | foam board |
| Chamfer Angle | 45° |
| Saw Blade Motor Power | 15KW |
| Saw Blade Motor Speed | 2980 rpm |
| Saw Blade Sizes | 350-450mm (core 50mm) |
| Preserve Original Edge Functionality | √ |
| Driller Motor Power | 5.5KW |
| Driller Motor Speed | 0-24000rpm |
| Total Power | 27.25KW |
| Water Consumption | 3.5m³/h |
| Overall Dimensions | 5400*3000*2650mm |
| Weight | 4000 KG |
