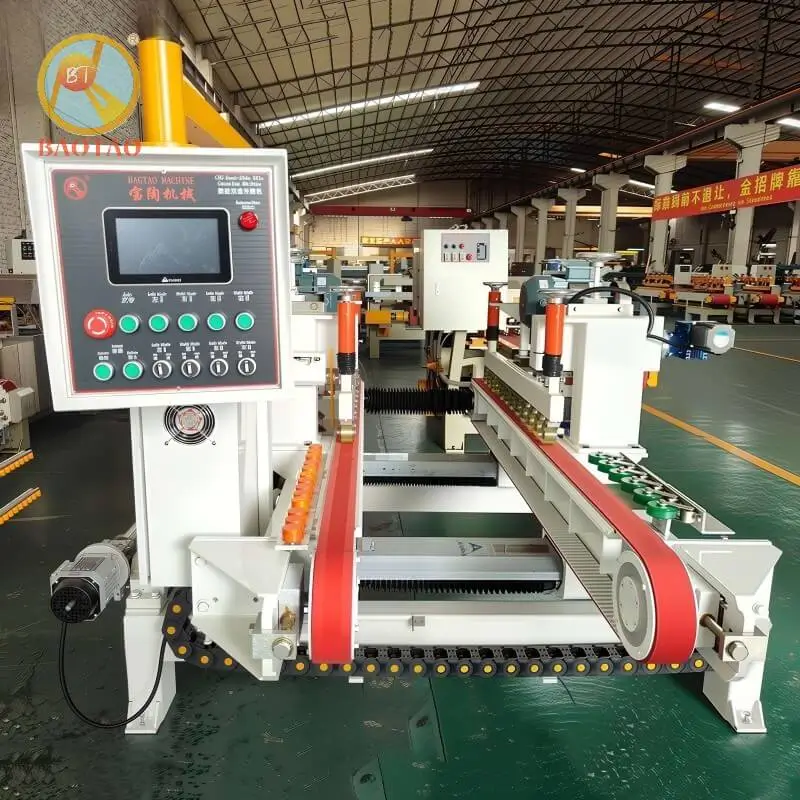

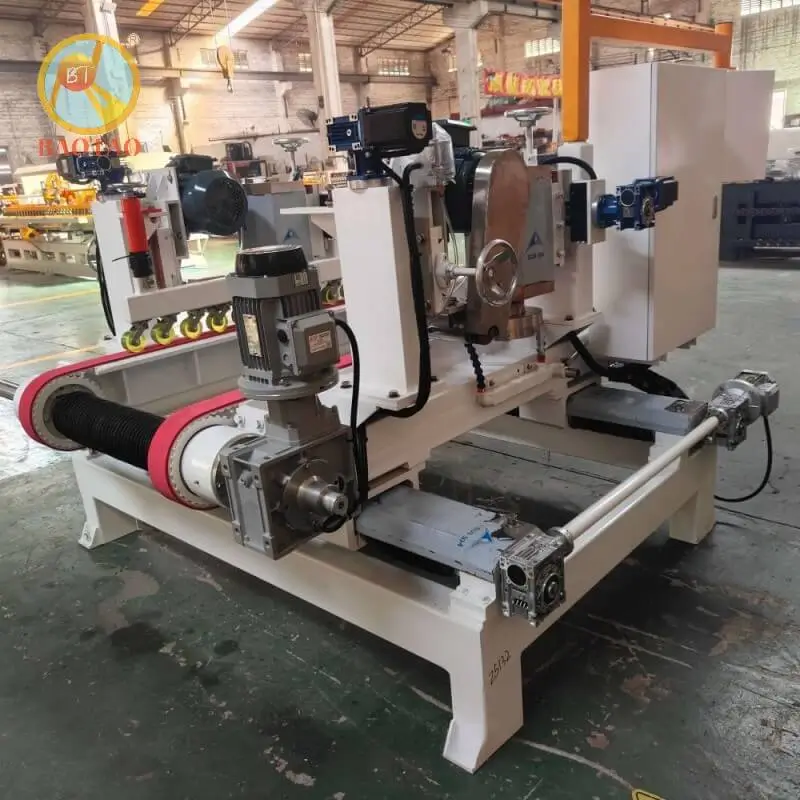

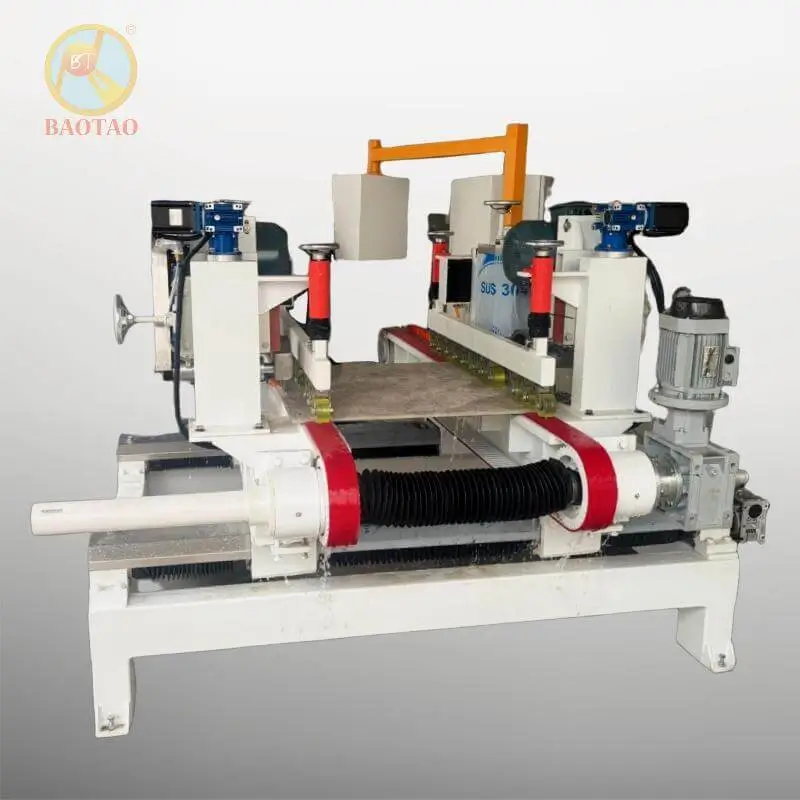

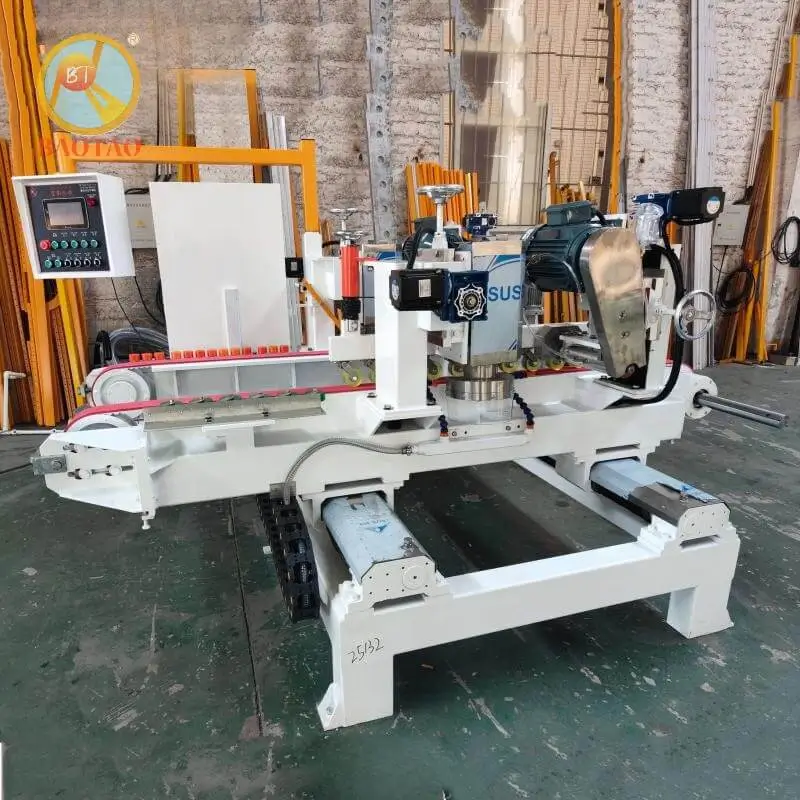

BT1200GR4H 4 head facade wall cladding tiles grooving machine, is heavy duty cutting machines for Wall Cladding Outdoor Stone hanging industries.
It is fully automatic with conveyor belt , which can make the grooves at the both side at the same time.

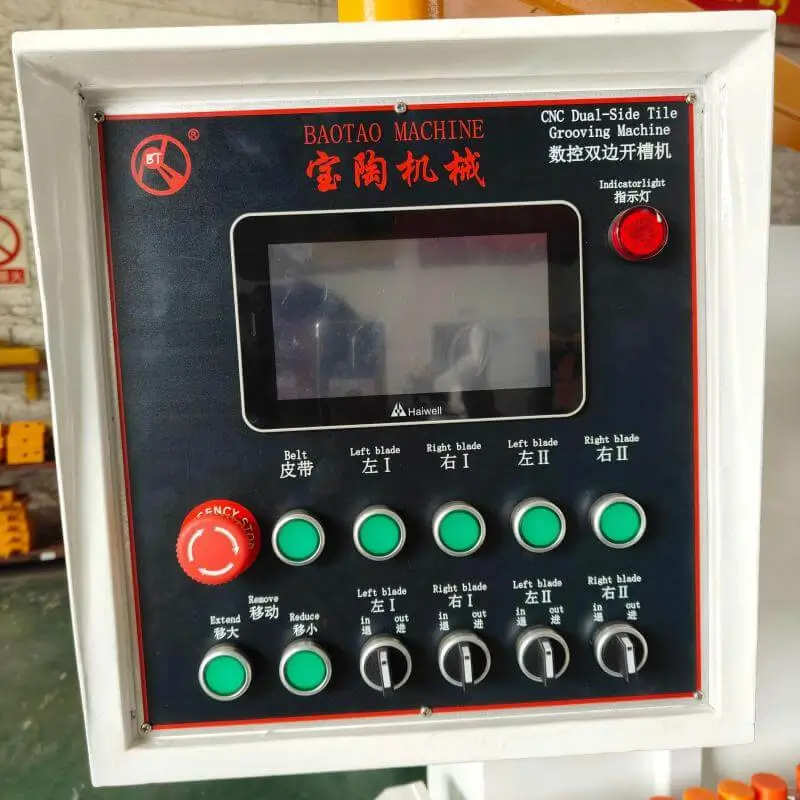

Adopts PLC system to adjust grooving distance.
Click Working demo video:
Applications:

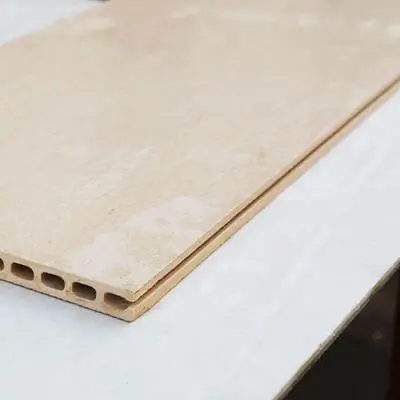

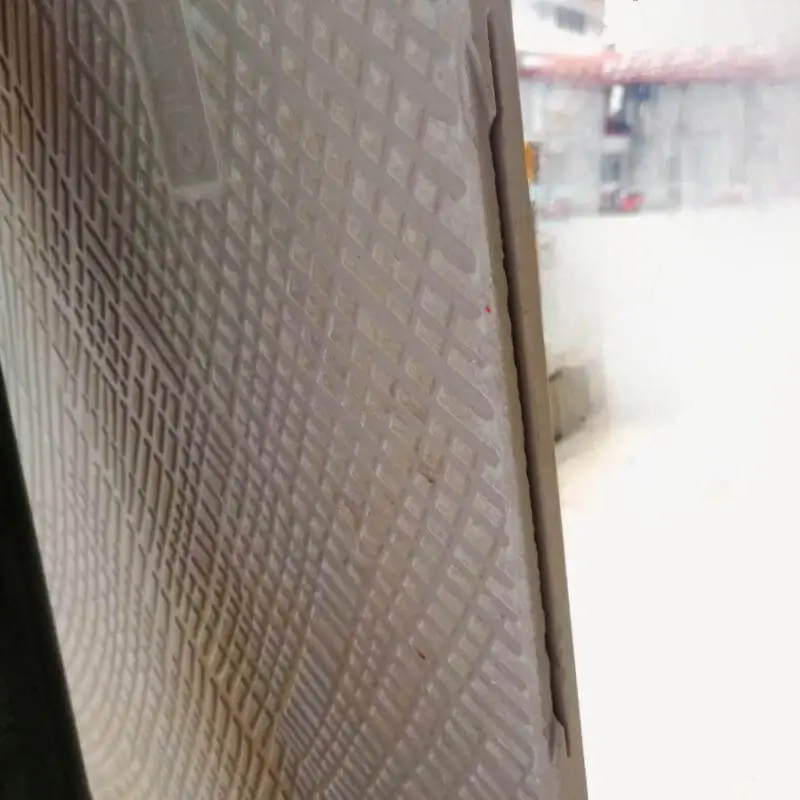

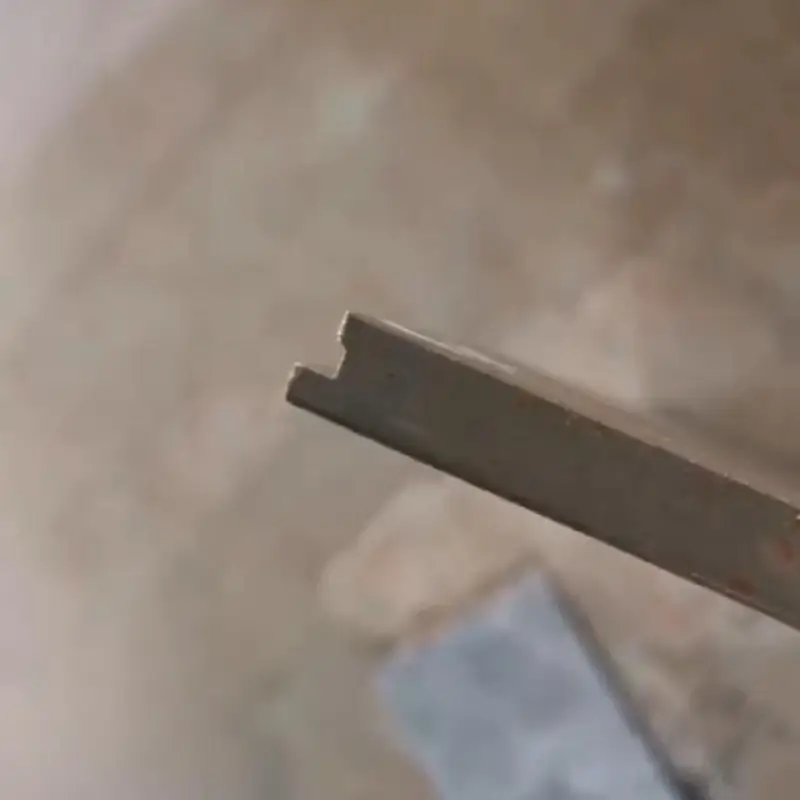

Slotting or grooving on the facade wall tiles of porcelain/stone/marble/ceramic tile.
|
|
Apply in construction of wall cladding, outdoor stone hanging, stone ventilated facade or stone curtain wall.
|
|
Functions and features:
Slotting whole edge,
Make grooves for part of edge,

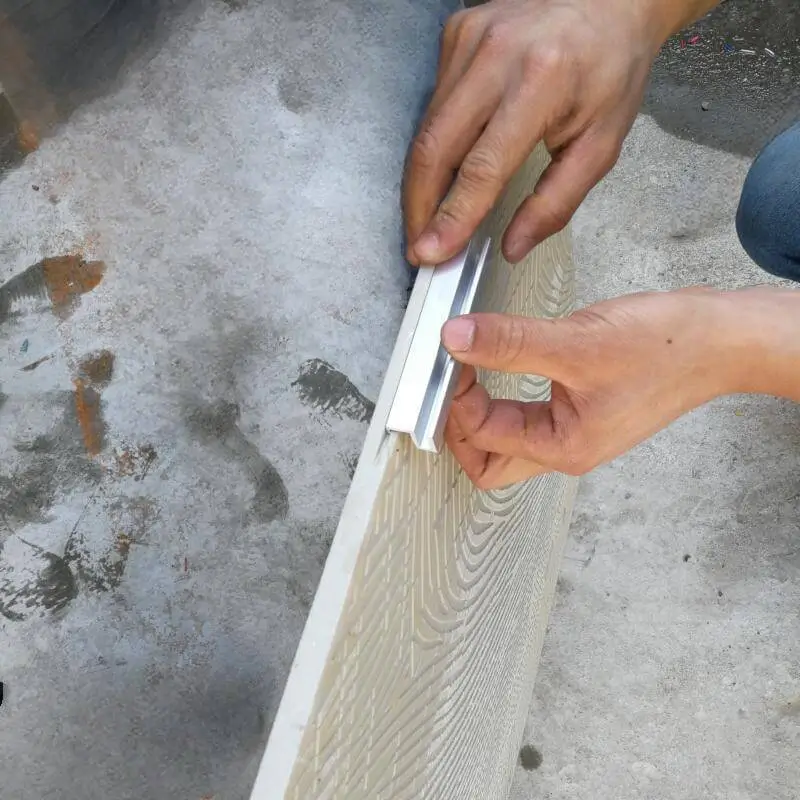

Cut out small part for support brackets.

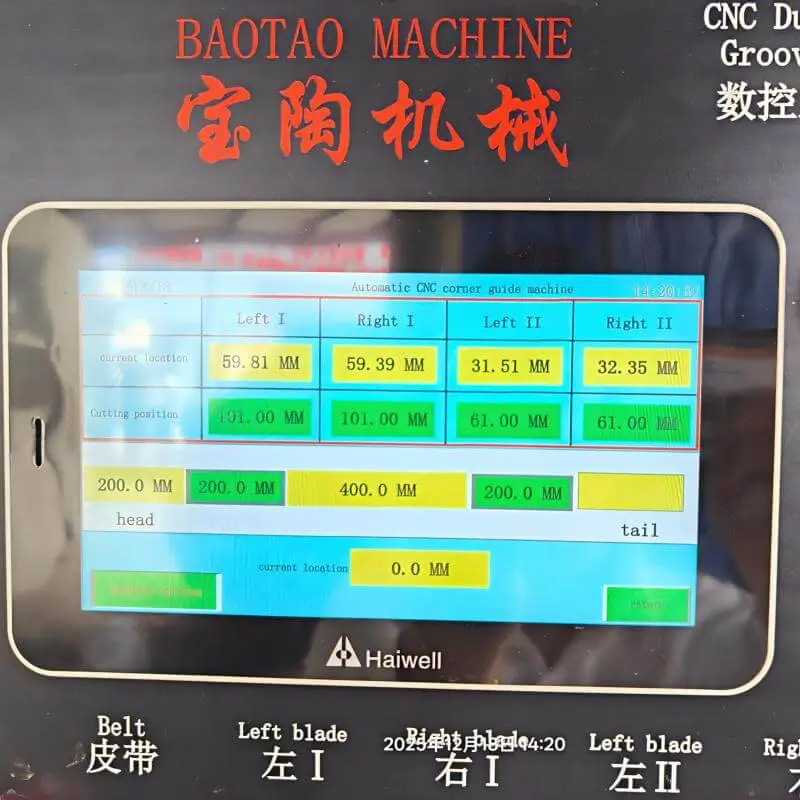

Plc adjust grooving distance.
Double synchronic conveyor belt for adjusting different sizes automatically.
|
|
|
|
Consumables:

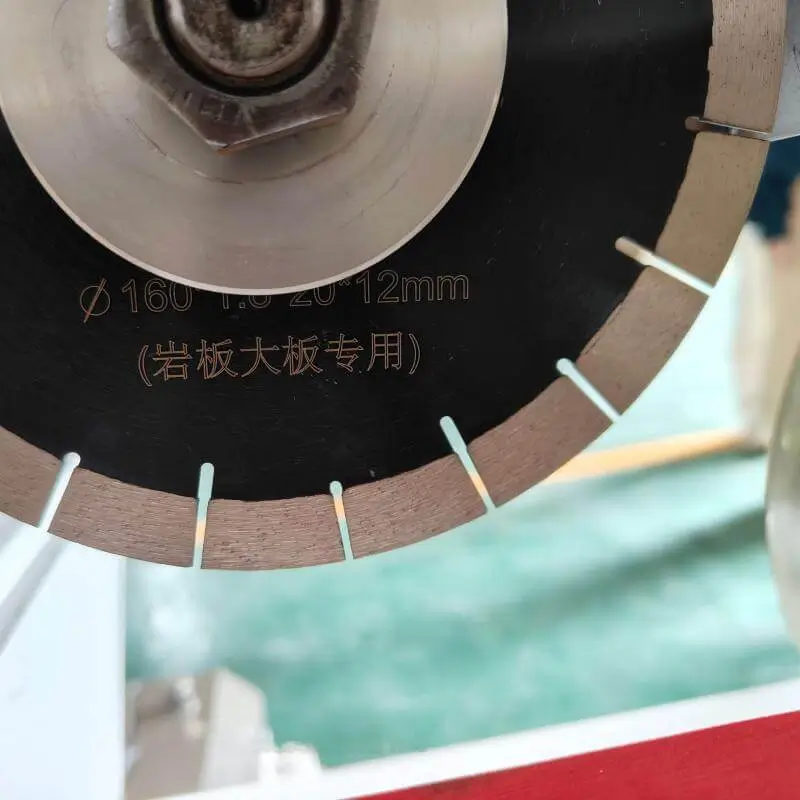

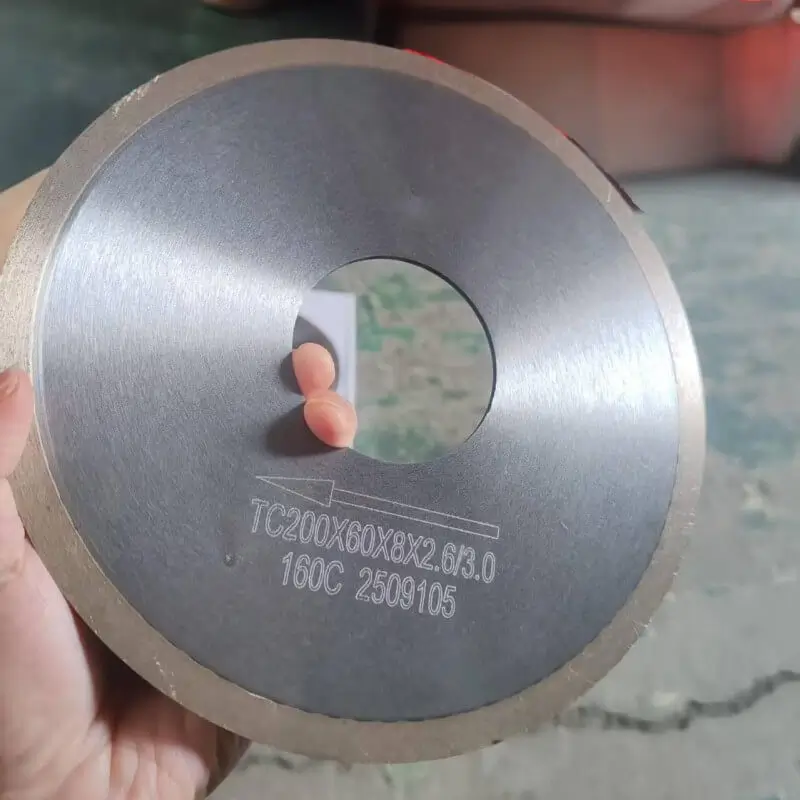

diamond cutting blades
Technical parameters:
| working heads: | 180ºcut x2, 90ºcut x2 |
| Processing width | 400-1200 mm |
| Processing speed | 1-5 m/min |
| Total power | 18 kw |
| Cutting blade size | Φ 160-200 mm |
| Power | 380V 3PH 50HZ |
| Dimension(L*W*H) | 250x210x160cm |
| Weight | 1300kg |
You may like other models:
|
|

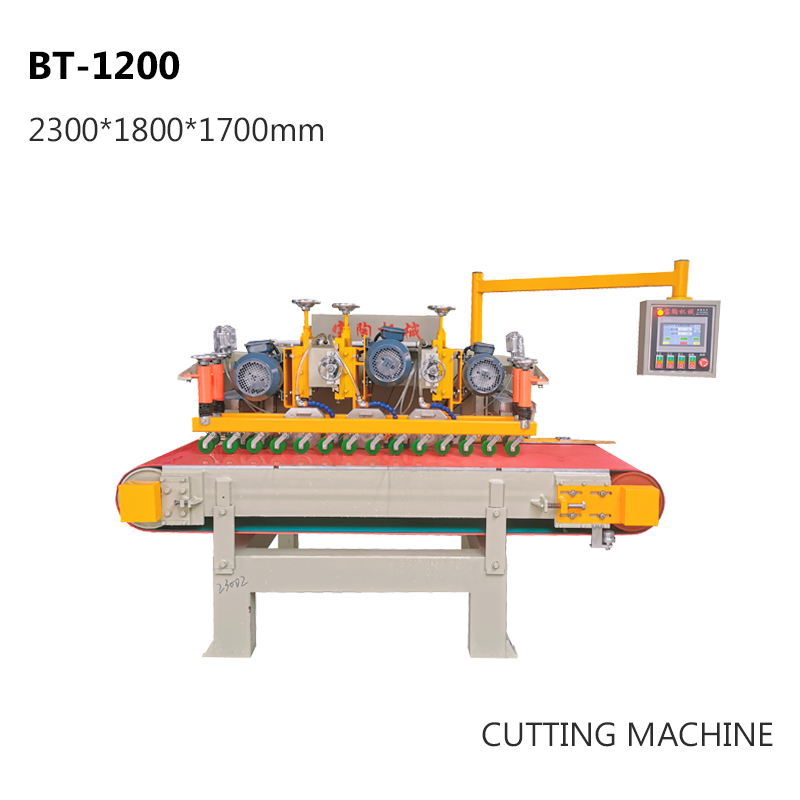

Automatic Tile Cutter Machine | 45 degree cutting machine |
