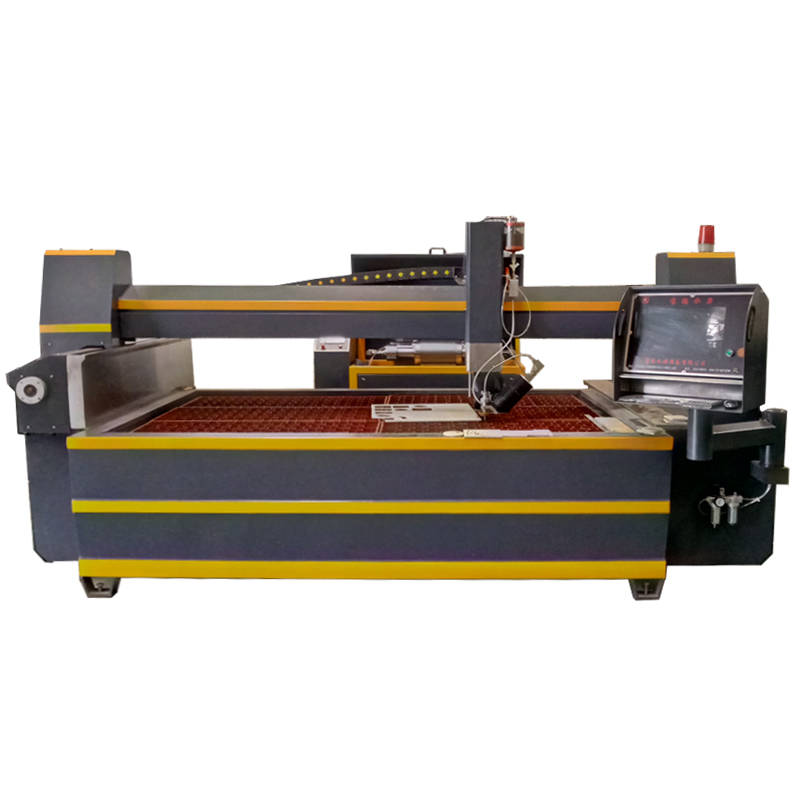

BT-2515 AB 5 Axis Water Jet Tile Cutting Machine

Founded in 2005,Foshan Bao Tao machinery Equipment Co., Ltd. is a well-known brand manufacturer of various kinds of ceramics, stone processing machinery and equipment research and development, production, sales and after-sales service.
  • product details


-Characteristic of BT-2515 AB 5 Axis Water Jet Tile Cutting Machine


Baotao AB 5 axis water jet cutting machine , products applicable to cut ceramic tile, marble, granite, glass, metal, stainless steel, stone, rock, steel, alloy steel, copper, and many other materials. Marble Waterjet Flower Medallion Inlay  Floor Tiles Designs. It controlled by computer to make precision cutting. The cutting table adopts gantry structure, good stability, cutting no chipping, the crack is small, high precision.


The complete set of configuration includes:


1. water jet cutting table

2. CNC water jet control system

3. abrasive supply system

4.  water jet supercharger system

5. circulation cooling system


-Vulnerable parts of BT-2515 AB 5 Axis Water Jet Tile Cutting Machine


gem, sand pipe, high pressure water ring, water switch sealing ring, water switch thimble, water switch spherical valve pad, valve core, valve pad, garnet sand


-Parameter of  BT-2515 AB 5 Axis Water Jet Tile Cutting Machine


Model

BT-2015

BT-2515

BT-3020

Structure

Bridge

Bridge

Bridge

Cutting table size

2100x1600mm

2600x1600mm

3100x2100mm

Stroke

X-axis

2000mm

2500mm

3000mm

Y-axis

1500mm

1500mm

2000mm

Z-axis

130mm

130mm

130mm

CNC Controller

AC Servo System

AC Servo System

AC Servo System

Accuracy

Cutting

±0.1mm

±0.1mm

±0.1mm

Repeat ability

±0.05mm

±0.05mm

±0.05mm

Traverse speed

6000/15000 mm/min

6000/15000 mm/min

6000/15000 mm/min

Power source

380VAC, 50Hz, 3Phase

380VAC, 50Hz, 3Phase

380VAC, 50Hz, 3Phase

Application

Marble Stone Inlaid Flooring Work

Weight

4800KG

4850KG

5000KG


-Product Video



-Product Description






oshan Bao Tao machinery Equipment Co., Ltd.

Foshan Bao Tao machinery Equipment Co., Ltd. is a well-known brand manufacturer of various kinds of ceramics, stone, glass, deep processing machinery and equipment.

The main products are: arc machine polishing machine, stone line polishing machine, multi-function polishing machine, plane polishing machine, intelligent water knife, edge grinding machine, CNC automatic cutting machine, automatic dry cutting line and other various ceramic processing equipment.
