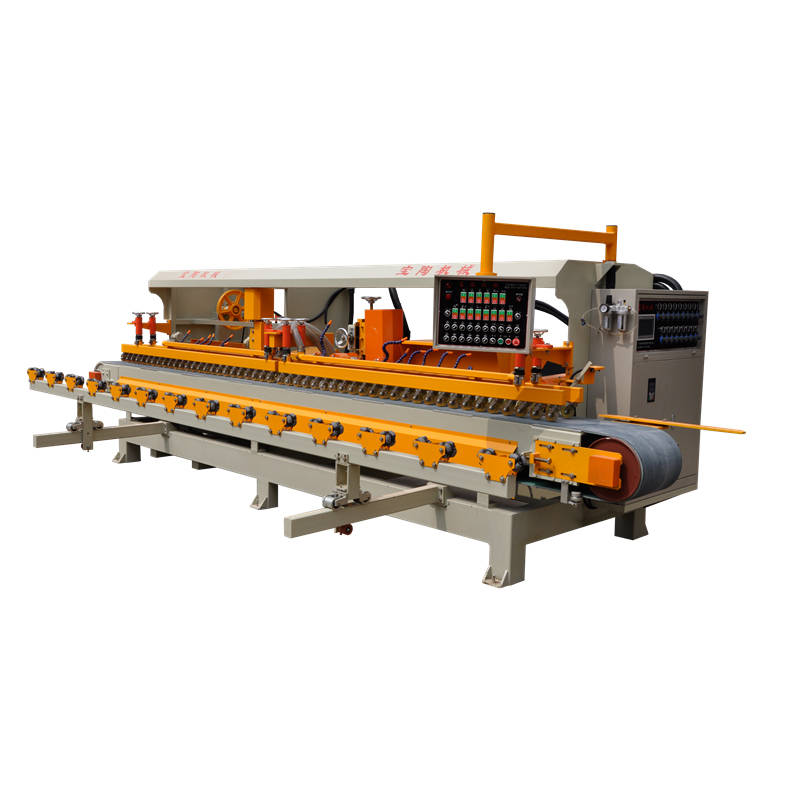

BT-2500 Fully Automatic Quartz Countertop Edge Polishing Machine

Founded in 2005,Foshan Bao Tao machinery Equipment Co., Ltd. is a well-known brand manufacturer of various kinds of ceramics, stone processing machinery and equipment research and development, production, sales and after-sales service.
  • product details


video for product-27.png

Scan to See Video


-Description of BT-2500 Fully Automatic Quartz Countertop Edge Polishing Machine




BT-2500 Fully Automatic Quartz Countertop Edge Polishing Machine,The machine is mainly used to process the quartz countertop edges. It can do R3 round edge, calibrating, grooving, flat polishing. The machine have special pressure structure, each press roller drive bu independent cylinder. The structure can provide enough pressure when process different width slab at same time, to make sure whole processing is stable. It can be used as quartz straight edge polisher, quartz flat edge polisher, quartz eased edge polisher, quartz pencil round polisher and quartz double radius polisher.


It is a new machine developed by BAOTAO MACHINERY, mainly apply in countertops, vanity tops, kitchen tops. It can grind and polish the upper and lower edge, straight edges, without vibration , with good processing effect and high efficiency. It is the best choice for stone processing workshops.


-Parameter of BT-2500 Fully Automatic Quartz Countertop Edge Polishing Machine


No.

Name

Parameter

1

Nos. Of flat trimming head

1pc

2

Nos. offlat polish head

6pc

3

Nos. Of calibrating head

1pc

4

Nos. Of calibrating polishing head

2pc

5

Nos. Of groove head

1pc

6

Nos. Of R3 round polishing on top

2pc

7

Nos. Of R3 round polishing on bottom

6pc

8

Processing width

600-2500mm

9

Processing speed

0.3-4m/min

10

Max processing thickness

60mm

11

Air consumption

50L/min

12

Water consumption

400L/min

13

Belth width

400mm

14

Total power

32kw

15

Size of machine

6.0*1.7*2.0m

16

Weight

6000kg


-Product Video


-Product Description





quartz-edge-processing (2).jpg

BT-2500 Fully Automatic Quartz Countertop Edge Polishing Machine(图5)

BT-2500 Fully Automatic Quartz Countertop Edge Polishing Machine(图6)
